Overview
Featured
Overview
| Specification | Details |
|---|---|
| Model | GTBZ18SI |
| Maximum Working Height | 20.19m |
| Maximum Platform Height | 18.19m |
| Maximum Horizontal Reach | 13.50m |
| Overall Length (Retracted State) | 10.10m |
| Overall Width | 2.50m |
| Overall Width (Transport State) | 2.28m |
| Overall Height | 2.49m |
| Overall Height (Transport State) | 2.35m |
| Work Platform Size (Length × Width) | 2.20m × 0.80m |
| Minimum Ground Clearance | 0.24m |
| Wheelbase | 2.60m |
| Safe Working Load | 230kg |
| Maximum Number of Workers | 2 |
| Tail Swing of Turntable | 1.30m |
| Minimum Turning Radius (Inner/Outer) | 3.37m/5.37m |
| Turntable Rotation Angle | 360° Continuous |
| Platform Swing Angle | ±90° |
| Boom Swing Angle | +70°/-60° |
| Travel Speed (Retracted State) | 6.1km/h |
| Travel Speed (Working State) | ≤1.1km/h |
| Maximum Gradientability | 40% |
| Maximum Allowable Working Angle | 5° |
| Tires | 315/55D20 |

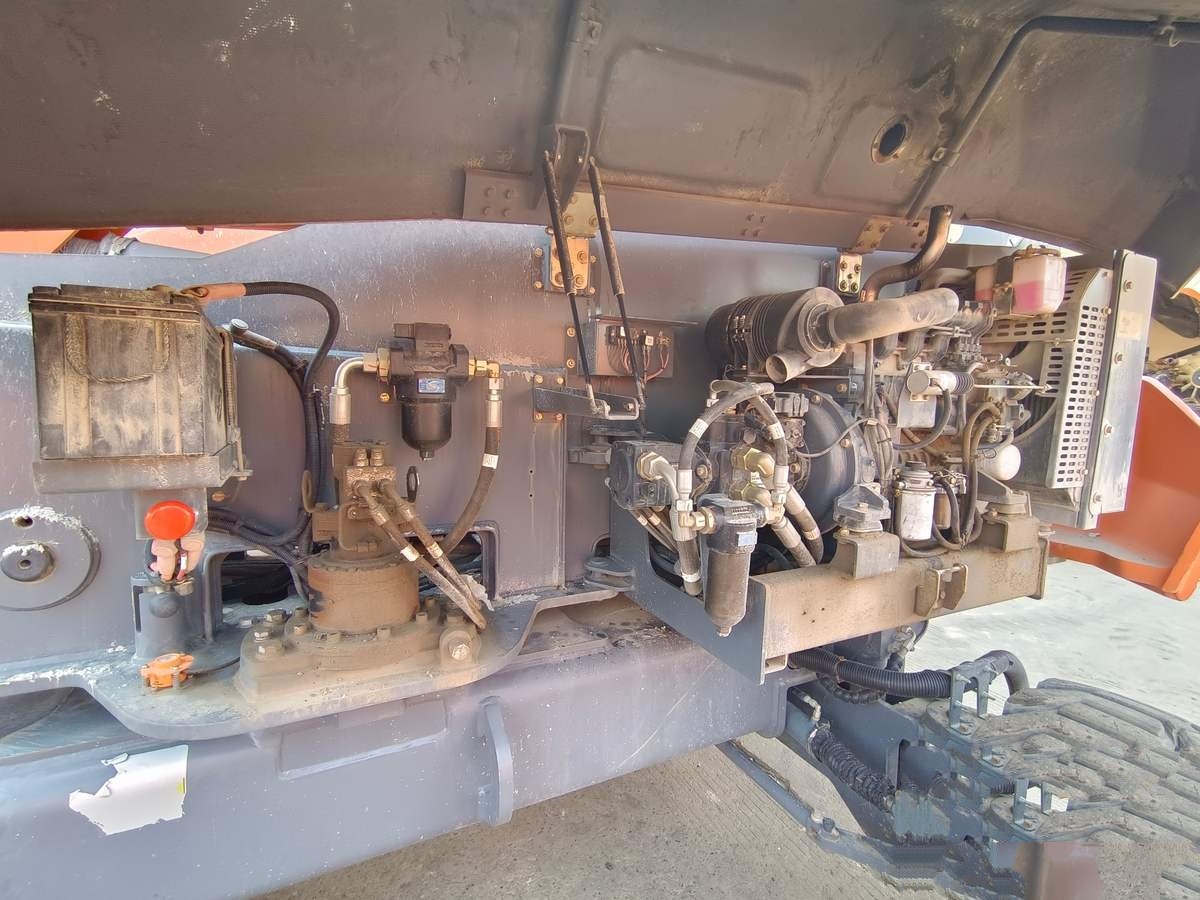

| Engine (Kubota V2403) | 34.1kW/2400rpm |
| Engine (Deutz D2011 L03) – Optional | 36.4kW/2800rpm |
| Fuel | Diesel |
| Hydraulic Tank Capacity | 190L |
| Diesel Tank Capacity | 110L |
| Overall Weight | 8800kg |
Featured
## Dingli GTBZ20SI Aerial Work Machinery Advantages:
1. **Wide Aerial Work Range**: Capable of reaching up to 20 meters in height, meeting a variety of aerial work requirements.
2. **Good Stability**: Equipped with stable outriggers, the machine can maintain stability on uneven ground.
3. **Easy Operation**: Adopts electric automatic control systems, making operation simple and convenient, reducing the complexity of manual operations.
4. **Safe and Reliable**: Equipped with safety devices such as overload protection and guardrails to ensure work safety.
5. **Strong Load Capacity**: With a large load capacity, it can carry items of different weights for work.
6. **High Flexibility**: The machine can rotate 360 degrees, facilitating work in multiple directions.
7. **Simple Maintenance**: The machine uses modular design, which is easy to maintain and reduces repair time and costs.
8. **Diversified Functions**: In addition to aerial work, it can also perform other tasks such as wiring and decoration.
In summary, Dingli GTBZ20SI aerial work machinery has the advantages of height, stability, safety, and easy operation, making it suitable for various aerial work needs.
